10-50ton durable high effecient crushing bucket for rock cushing
for JCB
What is the use of crusher bucket?
Bucket crushers are primarily employed in mining and demolition for
the breaking-down of crude minerals, concrete and masonry. During
the crushing process, the crusher bucket is positioned vertically
so that the crushed material can be released. The jaw bucket works
with the hydraulic system of the excavator.

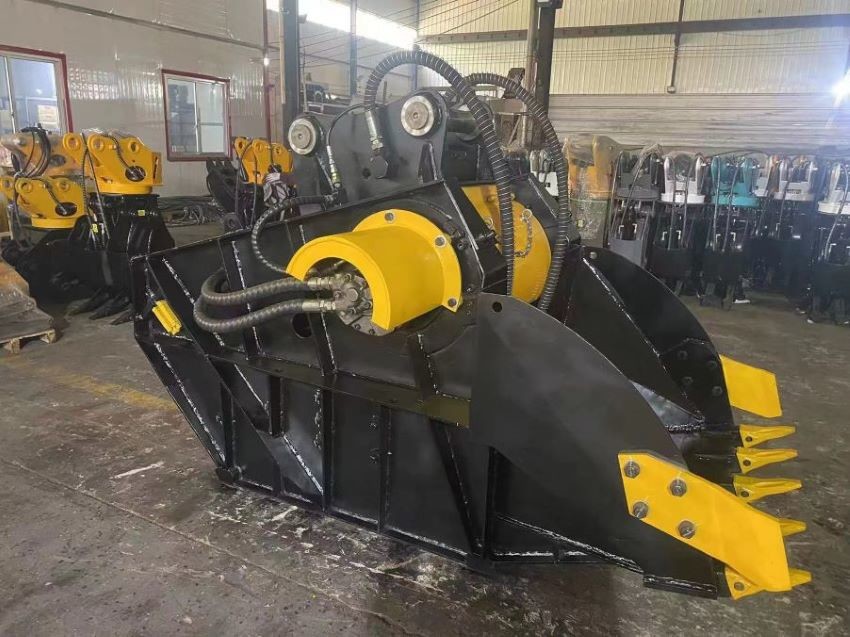

Jaw crusher bucket
Product features:
By reversing, the concrete stuck in it can be removed
Or the rock can be pushed out, and then the hydraulic motor can be
immediately activated
Continuing the crushing process in a forward direction greatly
improves work efficiency.
The upper and lower jaw plates can be exchanged for use, while a
single jaw plate can be used interchangeably
The front and back can also be exchanged, greatly extending the
service life. use
It is a hydraulic motor directly driven by an independently
designed hydraulic motor
Formula, easier to maintain.
This product uses 2 round-trip high-pressure oil pipes and 1
Low pressure motor return pipe.
Applicable fields
Widely used in industries such as mining, road maintenance, and
construction, to handle construction waste or materials that are
shoveled
Crushing treatment.
Product Features
It has outstanding advantages such as flexible structure, reliable
operation, strong adaptability, low cost, and easy maintenance;
Realizing the resource utilization, reduction, and harmlessness of
construction waste, saving landfill costs, and improving the
recycling rate;
Reducing the extraction of natural sand and gravel, minimizing
environmental pollution, and protecting natural resources.
Product Parameters
| Itemlmodel | Unit | DPCB-225 | DPCB-300 |
| Suitable Excavator | Ton | 19-25T | 26-35T |
| Feed Port Size | mm | 740*500 | 900*550 |
| Discharge Adjustment | mm | 15/120 | 15/120 |
| Weight | kg | 3300 | 3800 |
| Bucket Capacity | m³ | 0.7 | 0.85 |
| Hydraulic Oi | bar | 200 | 200 |
| Oil Quantity | L/min | 150 | 180 |
