Brand Name : | Dopro |
Model Number : | DPTM7000 |
Certification : | ISO CE |
Price : | 50-5000 |
Supply Ability : | 5000 Pcs Per Month |
Delivery Time : | 3-7 Working Days |
Railway Sleeper Auto-change Equipment SLEEPER CHANGING MACHINE SLEEPER CHANGER sepcial function for construction
Modification of track sleeper changing machine
The excavator sleeper fixture can be installed on the front-end
working device of the excavator through a quick change connector.
The maintenance of railway tracks has become
It is becoming increasingly important because over time, various
problems will arise on railway tracks. We ensure the quality of
railway tracks, from
And to ensure the safety and security of our lives
The excavator sleeper fixture can be installed on the front-end
working device of the excavator through a quick change connector.
The maintenance of railway tracks has become
It is becoming increasingly important because over time, various
problems will arise on railway tracks. We ensure the quality of
railway tracks, from
And to ensure the safety and security of our lives
Applicable fields

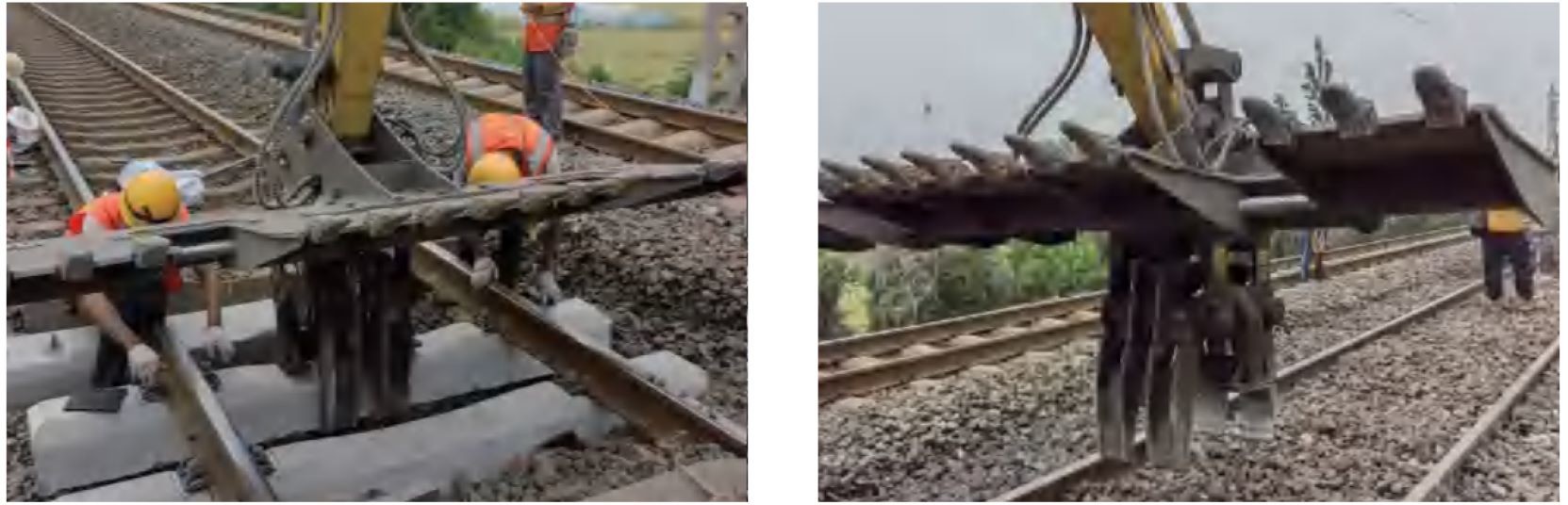

Widely used in the installation and replacement of track sleepers
for both public and railway purposes.
Product Features
DOPRO sleeper machine is made of special wear-resistant manganese
steel plate;
The dual oil cylinder and four grip grabbing design enhances the
firmness of the grabbing sleepers;
It can achieve 360 degree rotation and adjust the angle for precise
placement;
The box type design scraper can easily level and scrape the stone
foundation;
The grabbing disc design of the sleeper machine is protected by
nylon blocks to ensure construction operations
Do not damage the surface of the sleepers;
The large displacement imported rotary motor has a high torque and
can easily rotate up to 2 tons.
Item/Model | Unit | DPSC-3 | DPSC-5 |
External dimension | mm | 2765*1316 | 2765*1370 |
Max.Opening | mm | 630 | 630 |
Grab weight | kg | 800 | 800 |
Rotating flow | Lmin | 25-35 | 25-35 |
Rotating pressure | kg/cm² | 80-120 | 80-120 |
Working flow | Lmin | 50-80 | 50-80 |
Working pressure | kg/cm² | 160-220 | 160-220 |
Weight | kg | 930 | 990 |
Suitable Excavator | ton | 7-8 | 10-15 |
![]() |
