Brand Name : | Dopro |
Model Number : | DPAP2000 |
Certification : | ISO CE |
Price : | 8-800 |
Supply Ability : | 8000 Pcs Per Month |
Delivery Time : | 3-7 Working Days |

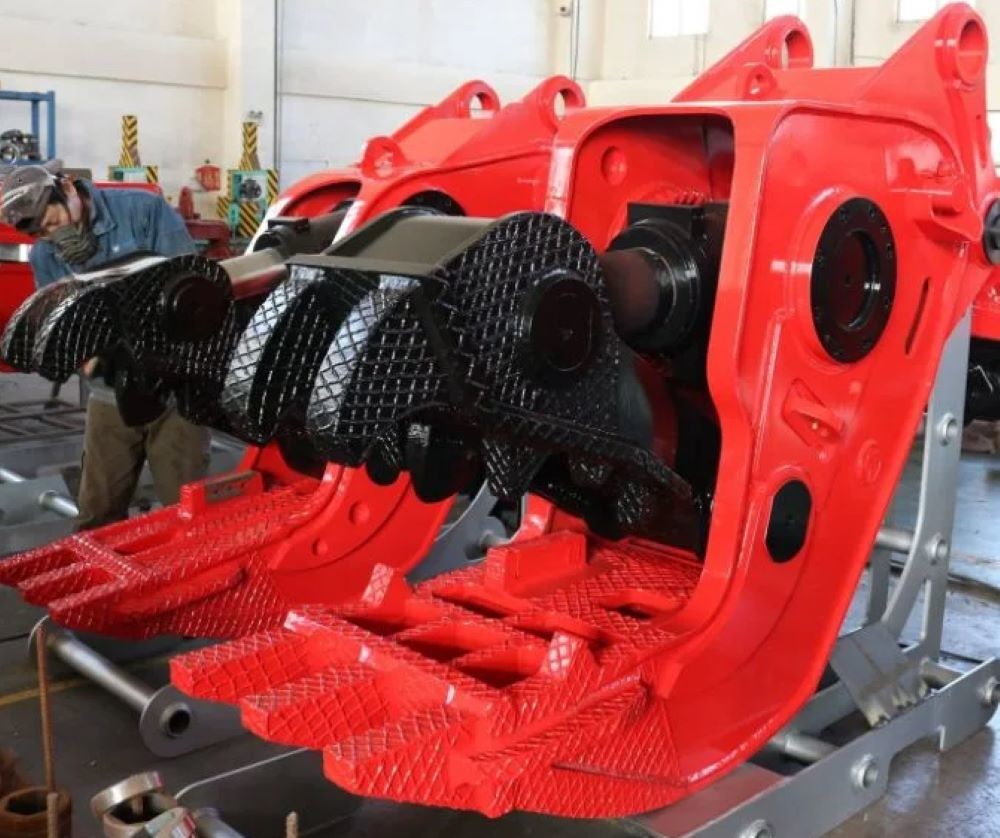

10-36 ton 36O° ROTATING HYDRAULIC PULVERIZER heavy duty for cutting concrete all type excavator
We launches its new series of dedicated rotating pulverizer. This
equipment is particularly effective for primary and secondary
demolition, being suitable for high reach and regular applications.
The RP range are fitted with a power valve to give maximum power
when required and decrease cycle times when no load is applied.
The perfect combination of power through the large hydraulic
cylinder, top quality components and highest grade steels which
give the optimum strength and wear resistant properties.
As below are the advantages for dopro hydraulic rotation
pulverizer.
1. Structure: The reinforced RP pulverizer structure is designed to
last forever and facilitates the crushed material drop off
increasing efficiency.
2. Rotation: The continuous hydraulic rotation enables precise
positioning during in height demolitions and ground operations,
while its robust components grant high durability.
3. Mobile jaw plate: The 2 different jaw plate available ensure a
perfect fit with the specific job. The CRP plate, with a single
tooth, grants higher penetration on tough concrete and is indicated
for primary demolition. The PP plate, with double teeth, maximizes
productivity and is mostly used for secondary demolition.
4. The cylinder with great power and high speed: The high
performance of the RP pulverizer is guaranteed by the presence of a
speed valve. This allows an increase in the number of opening and
closing cycles of the pulverizer and for the hydraulic circuit of
the excavator to be preserved.
5. Blades: On each model there are blades for rebars cutting. These
parts can be turned to different sides to recover the correct
profile of the cutter.
6. The speed valve: we add speed valve to reduce opening and
closing time boosting productivity. So it will save the project
time and improve efficiency.
7. The interchangeable parts: like teeth plates and blades, ensure
quick and easy maintenance.
SPECIFICATION | |||||
DESCRIPTION | UNIT | DPAP1600 | DPAP2000 | DPAP3000 | DPAP4500 |
Applicable Excavator | ton | 14~20 | 18~26 | 26~32 | 38~48 |
lbs | 30,864~44,092 | 39,683~57,320 | 57,320~70,547 | 83,775~105,821 | |
Operating Weight | kg/lbs | 1,250/2,755 | 1,800/3,968 | 2,350/5,180 | 3,450/7,605 |
Overall Length(L) | mm/inch | 1,580/62.2 | 1,806/71.1 | 1,990/78.3 | 2,336/919 |
JawOpening | mm/inch | 800/31.4 | 980/38.5 | 1,100/43.3 | 1,300/51.1 |
Force at Mid | ton/lbs | 70/154,323 | 120/264,554 | 195/429,901 | 270/595,248 |
Operating Pressure | bar/psi | 280/4,061 | 300/4,351 | 320/4,641 | 320/4,641 |
Setting Pressure | bar/psi | ||||
Rotation Type | Fixed |
![]() |
