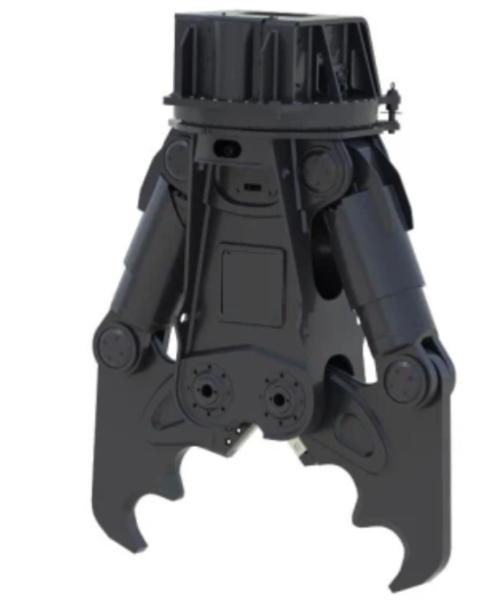

12 15 18 20 25 30 35 40T Excavator Hydraulic Demolition crusher
Cutting concrete Demolition Crusher
What is hydraulic crusher demolition?
Hydraulic concrete crusher tool is ideal in the demolition of
concrete. It assures operation without noise, dust, percussion and
vibration that can cause damage and dangerous situations to the
structures. The Hydraulic Concrete Crusher is used by one single
operator and can break with incredible power and precision.
Applications
Can be used to demolish buildings chemical equipment.
Main features
●Material:ThyssenKrupp XAR steel,High precision,more
durable in use,
●360°rotation function available.
Crushers are especially designed for primary demolition projects.
Dopro series makes it easy to demolish reinforced concrete and
other materials. The machines are particularly suitable for
demolishing buildings and bridges. The blades at the back of the
jaws are used to cut through the steel reinforcement in the
concrete.
Demolition of building involves large amount of concrete breaking
works. Traditional excavator mounted concrete breaker is one of the
most popular equipment use for building demolition, and its sound
power level can achieve . However, various quieter equipment for
concrete breaking and demolition can also be found in the market.
Product Parameters
SCRAP STEEL | |||||
Model | Unit | DPAC1600 | DPAC2000 | DPAC2300 | DPAC4500 |
Dead-weight | kg | 1413 | 2200 | 2977 | 4052 |
Max Opening | mm | 540 | 500 | 660 | 801 |
Height | mm | 2050 | 2380 | 2600 | 2700 |
Width | mm | 1175 | 1370 | 1600 | 1700 |
The Active Length of Blade | mm | 348 | 486 | 578 | 736 |
Rotation Mode | Ball | 360°Hydraulic | |||
Pressure | bar | 300 | 320 | 320 | 320 |
Root Crushing Force | ton | 138*2 | 171*2 | 330*2 | 387*2 |
Middle Crushing Force | ton | 80*2 | 102*2 | 189*2 | 218*2 |
Fore-end Crushing Force | ton | 53*2 | 75*2 | 127*2 | 147*2 |
Suitable Excavator | ton | 15-18 | 20-25 | 28-35 | 38-50 |
CONCRETE | |||||
Model | Unit | DPAC1600C | DPAC2000C | DPAC2300C | DPAC4500C |
Dead-weight | kg | 1345 | 2164 | 3060 | 4052 |
MaxOpening | mm | 650 | 950 | 1100 | 1200 |
Height | mm | 1888 | 2374 | 2480 | 2700 |
Width | mm | 1175 | 1360 | 1540 | 1700 |
The ActiveLength of Blade | mm | ||||
Rotation Mode | Ball | 360°Hydraulic | |||
Pressure | bar | 300 | 320 | 320 | 320 |
RootCrushing Force | ton | 120*2 | 168*2 | 288*2 | 375*2 |
Middle Crushing Force | ton | 66*2 | 78*2 | 125*2 | 174*2 |
Fore end Crushing Force | ton | 40*2 | 56*2 | 90*2 | 118*2 |
Suitable Excavator | ton | 15-18 | 20-25 | 28-35 | 38-50 |
