    360 Degree Hydraulic Rotating Gripper , Excavator Hydraulic Log Grab

    Ask Lasest Price
    Brand Name : Dopro
    Model Number : DPAW500
    Certification : ISO CE
    Price : 300-3000
    Supply Ability : 3000 Pcs Per Month
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

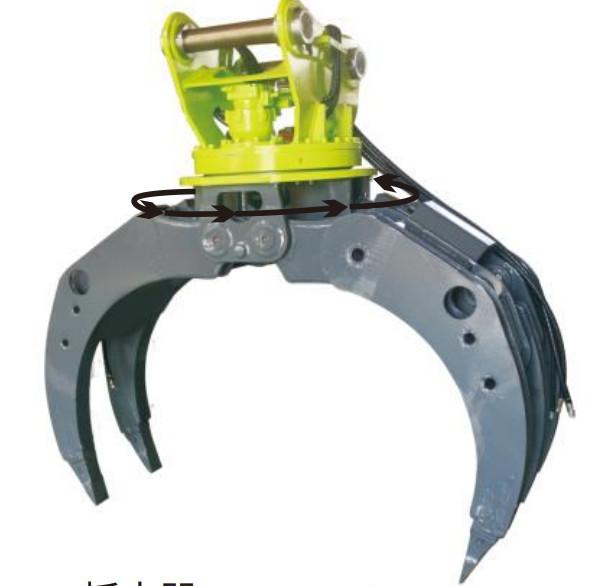

    360 Degree Hydraulic Rotating Gripper , Excavator Hydraulic Log Grab

    360 degree Hydraulic Rotating Gripper Wood Log Grab Grapple For EX200-5 EX300-5 EX330-5 EX330LC-5 EX370-5 Excavator


    Hydraulic grapple is an excavator attachment that looks like the gaping mouth of a large animal. This excavator attachment allows the operator to pick up heavy material like rocks, logs, and stumps


    What is an excavator grapple?
    Grapples for excavators are specialized attachments that amplify the functionality and versatility of excavators. There are numerous benefits of using an excavator attachment as these tools pick up, move, and sort materials of all shapes and sizes, such as logs, rocks, and bulky debris.


    How does a log grapple work?
    The grapples are pin mounted with a rotator which aids in positioning the logs for loading. Wheel loaders and tricycle based machines are also used to load logs onto trucks. These machines use a set of forks with a grapple for picking up the logs


    Applications
    Wood and other large scraps handling, moving, loading and organizing
    Main features
    ●Driven by M+S motor with brake valve; cylinder with USA safety valve(USA SUN brand)
    ●3+2,4+3,5+4 fingers for your option.
    ●Throttle, pressure reducing valve, relief valve (all the valves are usA SUN brand)are in electrical
    and hydraulic control system, making it safer and much more stable and durable in use.


    DP Wood Grapple is used to carry wood, High reliability with high strength and wear resistant materials. Heated bushings are inserted into all pinholes to increase the wear resistance of the pinholes to extend the life of the equipment.



    Applicable conditions and product characteristics:
    Excavating, loading and unloading of wood, log, reed,
    straw and various strip materials. Widely used in ports,
    forestry, timber yard and other occasions.
    High strength slewing bearing device, self-protection
    hydraulic motor drive, can rotate 360 degrees, easy to
    position at any Angle.
    The motor is equipped with double overload and double
    balance device. When the impact pressure is high, the
    internal flow pressure can be adjusted by itself to
    protect the motor in both directions.



    SPECIFICATION
    MODELDPAW500DPAW1400DPAW2000DPAW3000DPAW3800DPAW4500
    WEIGHT(kg)4009001300170020002451
    MIN100280310340566705
    MAX119617091750188022502600
    H67511751244137018462010
    H1397741778126215501720
    TON4~712~1818~2528~3536~4243~47

    360 Degree Hydraulic Rotating Gripper , Excavator Hydraulic Log Grab
