28-35 Tons Excavator Box Type Breaker Heavy Duty Excavator Hydraulic Breaker

Ask Lasest Price
Brand Name :	Dopro
Model Number :	DPBB1550
Certification :	ISO CE
Price :	60-6000
Supply Ability :	6000 Pcs Per Month
Delivery Time :	5-7 Working Day

Add to Cart

Product Details
Company Profile

28-35 Tons Excavator Box Type Breaker Heavy Duty Excavator Hydraulic Breaker

28-35 Tons Excavator box type SB121 tool 155mm breaker Excavator attachment heavy duty hard rock stone mining using

An excavator hydraulic hammer, also known as an excavator-mounted hydraulic breaker, is a powerful attachment used for breaking and demolishing hard materials such as concrete, rocks, asphalt, and compacted soil. It is specifically designed to deliver high-impact blows by utilizing the hydraulic power of the excavator.

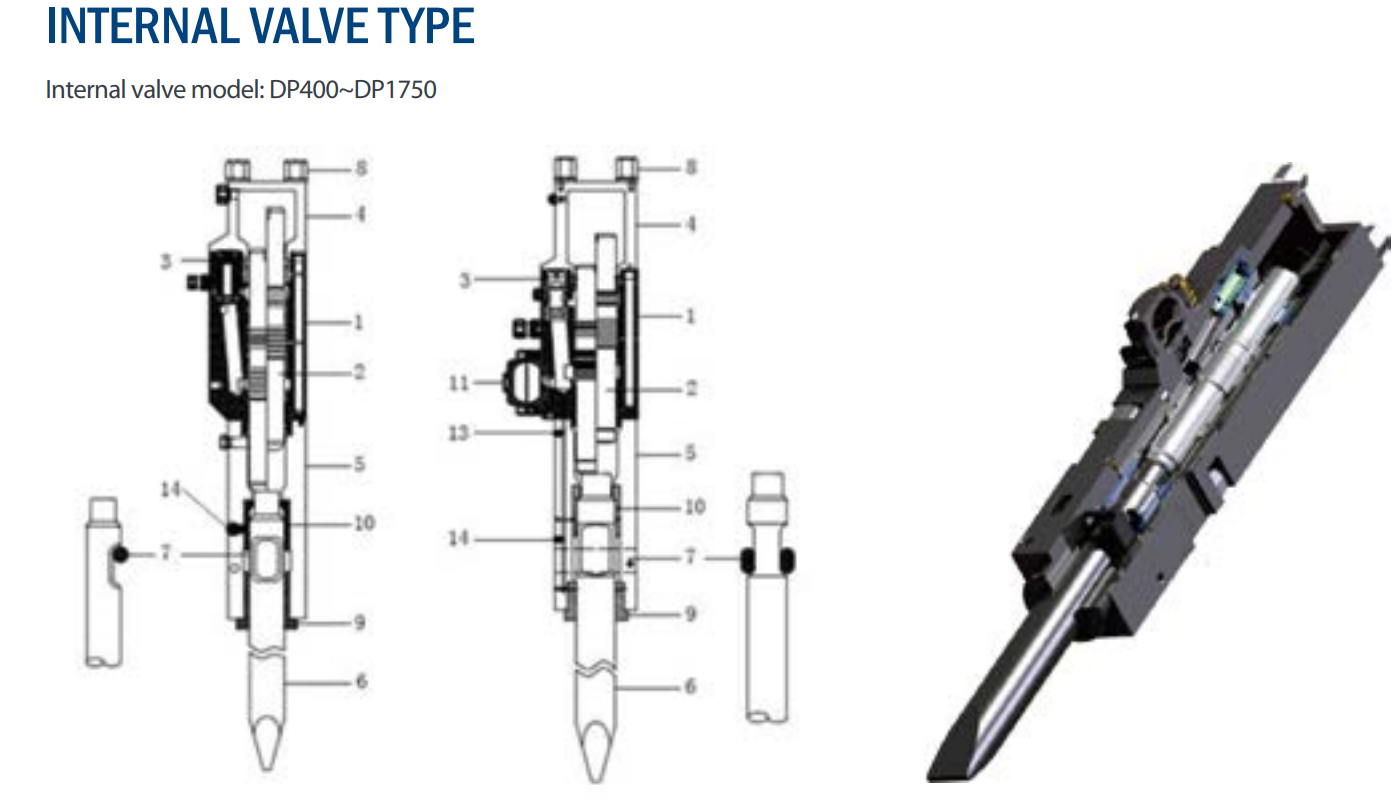

The excavator hydraulic hammer consists of a heavy-duty hammer mechanism that is connected to the excavator's hydraulic system. When activated, the hydraulic hammer uses the pressurized hydraulic fluid to generate intense energy, which is then transferred to the tool or chisel at the tip of the attachment. The chisel strikes the material with significant force, breaking it apart and allowing for excavation or removal.

Our Advantages
*Quality: Our hydraulic breakers are high technology . Using high-quality steel, professional heat treatment technology, and skilled
workers to produce each hydraulic breaker.

* Service: Our company has the complete pre-sale and after-sale system. For hydraulic breakers, we can provide 12 months of
warranty time and we are at your service 24 hours a day.

* Installation: hydraulic breakers conform to all the small, medium and large excavators on the market, and the strike
force and durability are leading the industry level.

SPECIFICATION
Model			DPBB400	DPBB450	DPBB530	DPBB680	DPBB750	DPBB1000
Suitable Excavator	Min	ton	0.8	1.2	2.5	4	6	11
	Max	ton	2.5	3	4.5	7	9	16
	Suitable	ton	1	2	3	6	7	14
Tool (MoilType)	Weight	Kg	4	6	9	20	25	59
Tool (MoilType)	Diameter	mm	40	45	53	68	75	100
Operating Weight (Tool+MC)		Kg	102	126	152	295	375	861
Operating Weight (Tool+MC)		lb	298	320	397	683	838	1962
Height		mm	1135	1213	1317	1620	1899	2316
Operating Pressure (Breaker)		bar	80～100	80～100	90～120	95～130	100～140	150～170
Operating Pressure (Breaker)		psi	1,160～1,450	1,160~1,450	1,305~1,740	1,377～1,885	1,450~2,030	2,175～2,465
Setting Pressure (Machine)		bar	150	150	150	170	180	200
Setting Pressure (Machine)		psi	2175	2175	2175	2465	2610	2900
Impact Rate		bpm	800～1,400	700～1,200	600～1,100	500～900	400～800	350～700
BackHead Pressure (N2-Gas)		bar/psi	14/203	14/203	16/232	16/232	16/232	16/232
Required Oil Flow		l/min	15～30	20～40	25～50	40~70	50～90	80～110
Required Oil Flow

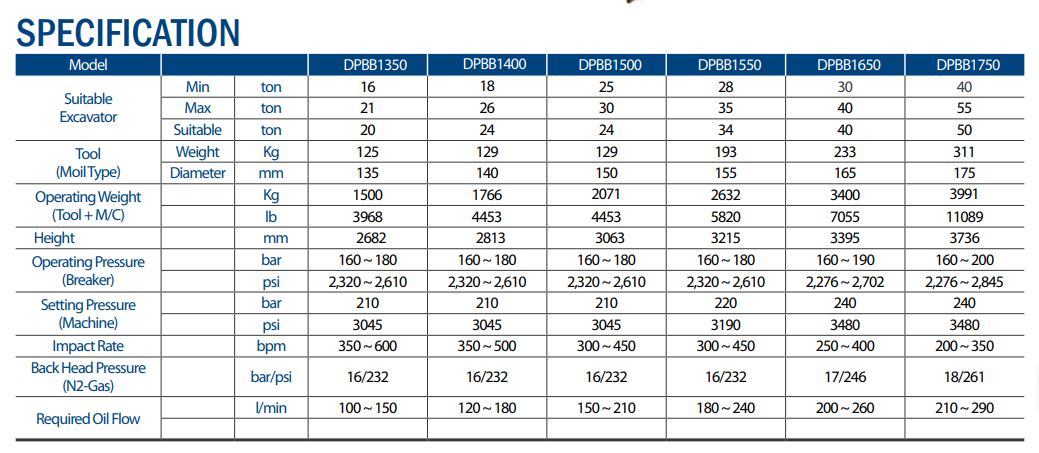

SPECIFICATION
Model			DPBB1350	DPBB1400	DPBB1500	DPBB1550	DPBB1650	DPBB1750
Suitable Excavator	Min	ton	16	18	25	28	30	40
	Max	ton	21	26	30	35	40	55
	Suitable	ton	20	24	24	34	40	50
Tool (Moil Type)	Weight	Kg	125	129	129	193	233	311
Tool (Moil Type)	Diameter	mm	135	140	150	155	165	175
Operating Weight (Tool+M/C)		Kg	1500	1766	2071	2632	3400	3991
Operating Weight (Tool+M/C)		lb	3968	4453	4453	5820	7055	11089
Height		mm	2682	2813	3063	3215	3395	3736
Operating Pressure (Breaker)		bar	160～180	160～180	160～180	160～180	160～190	160～200
Operating Pressure (Breaker)		psi	2,320～2,610	2,320～2,610	2,320～2,610	2,320～2,610	2,276~2,702	2,276～2,845
Setting Pressure (Machine)		bar	210	210	210	220	240	240
Setting Pressure (Machine)		psi	3045	3045	3045	3190	3480	3480
Impact Rate		bpm	350～600	350～500	300～450	300～450	250～400	200～350
Back Head Pressure (N2-Gas)		bar/psi	16/232	16/232	16/232	16/232	17/246	18/261
Required Oil Fow		l/min	100～150	120～180	150～210	180～240	200～260	210～290
Required Oil Fow

Suit for Various models of excavator
YUCHAI	YC35YC50YC55YC60YC65YC85YC135YC230
JCB	JS130JS210JS220JS290JS330
HYUNDAI	R55R60R80R130LC35R200R2005R210R2157/9R2205R225LC7/9R290
HYUNDAI	R290R290LC7R300LCR305LCR330LCR375R360LC7R450LC
CA*TERPILLAR	CAT305.5CAT306CAT307CAT308CAT312CAT315CAT320CAT323CA*T324
CA*TERPILLAR	CAT325CAT326CAT330CAT336CAT345CAT349CAT365CAT374CA*T390
KOMATSU	PC45PC50PC55PC56PC60567PC608PC708PC78PC1003PC1206
	PC1307PC2007/8PC220PC270PC240PC3006/7PC360PC4006/7/8 PC4506
	PC6006PC6503PC650PC800PC1000PC1200PC1250
ZXAIS/HITACAI	EX35EX40EX55EX60EX603ZX200ZX210ZX250ZX290ZX330ZX470EX1000EX1200
EC	EC55EC60EC140BPEW145BPEW160BBEC210EC240
EC	EC290EC360LCEC380.EC460EC480EC700
KOBELCO	SK35SK50SK60SK75SK100SK120SK200123456SK230SK250SK260SK280
KOBELCO	SK300SK330SK3306SK350SK400SK450SK480
DOOSAN/DAEWOO	DH35DH55DH60DH55DH60DH80DH807DH80GOLDDH150
DOOSAN/DAEWOO	DH200DH22035DH2805DX60DX200DX225DX260DH290DH360DH420DH500
SUMITOMO	SH55SH60SH75SH50SH100SH120SH200
SUMITOMO	SH20035SH22023SH280SH300SH350SH400SH450
LIUGONG	CLG904CLG9055CLG906CLG907CLG9075CLG908CLG915CLG150
	CLG920CLG921CLG922CLG225CLG924CLG925CLG933CLG936CLG939
	CLG942 CLG948CLG950CLG952CLG200CLG205CLG220CLG225
KUBOTA	KX135KX185KX155KX161KX163KX165KX183
IHI	IHI35IHI50IHI60IHI55IHI80IHI100
XCMG	XE55XE60XE65XE75XE80XE85XE135XE150XE155XE200XE205XE215
XCMG	XE225XE245XE270XE305XE335XE370XE380XE400XE470XE490 XE700
YANMAR	ViO35ViO55ViO75
cx	CX50CX55CX58CX75CX210CX240CX290CX330
KATO	HD820HD1023HD1430HD2045HD700
SANY	SY55SY60SY65SY70SY75SY85SY95SY115SY135SY155SY195SY200SY205SY215
SANY	SY220SY225SY235SY245SY285SY305SY335SY365SY375 SY395SY415SY485
