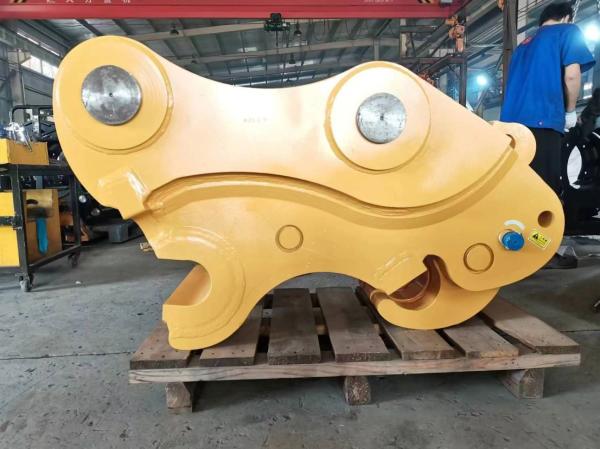

20 Ton Hydraulic Excavator Quick Coupler For Hitch Connector Bucket
Changer Komatsu PC200 PC230 PC320
Choose your excavator quick coupler
SAFETY CONSIDERATIONS
Most accidents occur within the first five seconds of connecting
the attachment to the coupler, and unintentional drops do happen.
Coupler-related injuries tend to be the result of an operator
failing to secure the safety lock, some of which end in fatality.
the best ways to prevent unintended coupler releases include ample
training on installation and testing procedures, increased
awareness of the hazards regarding attachment changeout, and
ensuring that the pins are inserted and locked properly. The
development of hydraulic couplers was a manufacturer response to
minimize the risk of injury and fatality, especially as they relate
to operator error.
While cost is an important factor in the purchase of any tool,
safety should be a top priority when considering how to choose an
excavator quick coupler.
HYDRAULIC COUPLERS
Hydraulic couplers offer the highest level of safety and efficiency
for your machine and your operators. The attachment changeout
process can be completed from inside the cab, with safety features
that make them the better choice for preventing injuries on-site.
One of the safety features that has been added to hydraulic
couplers include a wedge-locking system that requires the coupler
to lock the attachment in two different places. The pressure that
this creates will keep both pins and the attachment secure.
Another feature includes a safety knuckle that latches onto the
first of the two pins. This eliminates the risk of unintended
attachment drop, even if the operator forgets this part of the
process. The safety knuckle works separately from the wedge that
secures the second pin, meaning that even if the hydraulic system
fails, that first pin will not be released. Operators switch
attachments by releasing the wedge and securing the attachment on
the ground before removing the safety knuckle.
In the event that an operator forgets the attachment is unlocked,
some hydraulic couplers have a time-out feature. After about 5-12
seconds, the safety knuckle will re-engage itself if it is not
safely removed, preventing an unintended attachment drop. This time
frame is customizable to suit operator needs.
DP Quick Coupler changing buckets or special attachments in a few
minutes, usually without tools and without leaving the operator’s
seat.
Special Features
• Strong & stable compaction
• Compaction ground and slope
• Waterworks and sewer constructions
• Reclamation works of the-gas-pipe and wire
• Wear-proof & one-body design
• Available for wide range of excavators with safetly.
| SPECIFICATION |
| Model Unit DPAQ250 DPAQ450 DPAQ500 DPAQ600 DPAQ700 DPAQ900 DPAQ1000 |
| Length(0) | mm | 300~450 | 534~545 | 581~610 | 765 | 924~944 | 983~1050 | 1006~1173 |
| Height(G) | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558~610 |
| Width(B) | mm | 175 | 258~263 | 270~280 | 353~436 | 449~483 | 543~568 | 606~663 |
| PinsCenter Distance(D) | mm | 80~150 | 230~270 | 290~360 | 380~420 | 460~480 | 473~540 | 550~620 |
| ArmWidth(A) | mm | 80~140 | 155~170 | 180~200 | 232~315 | 306~340 | 375~411 | 416~469 |
| Retractable Distance ofoilCylinder | mm | 170~206 | 205~275 | 340~450 | 340~486 | 256~390 | 413~590 | 520~590 |
| Vertical Pins Center Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Weight | kg | 25 | 50~60 | 80 | 120~130 | 280~290 | 420~430 | 450~580 |
| Working Pressure | kg/cm² | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 |
| Necessary Flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Suitable Excavator | ton | 1.5~4 | 4~7 | 5~8 | 9~19 | 17~23 | 23~30 | 33~45 |
