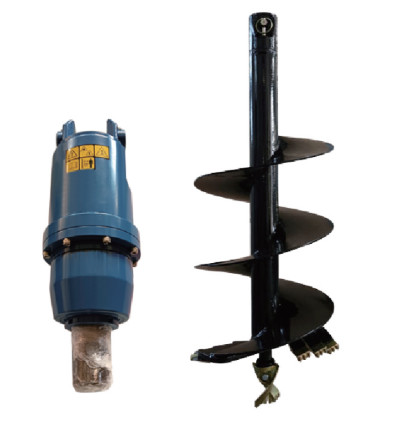

1.5-35 Ton Excavator Earth Auger Hydraulic Earth Drill
What is the use of earth auger drill?
Earth augers are used for making holes in the ground and are built
with a rotating metal pipe or rod with one or more blades attached
at the lower end. As suggested by the name, an earth auger is
designed to cut or scrape through ground and soil.
Are earth augers worth it?
Because the auger is meant to be held stationary as the hole is
bored, there is less stress placed on the hands and arms, as well.
For health reasons alone, augers are a worthwhile investment.
However, for people who have a lot of digging to do, an earth auger
becomes a time-saving necessity.
Suitable:
Used for tree planting, pole hole, drilling.
The product features
1. Q345 manganese plate steel, which has high strength and
corrosion resistance;
2. The drill teeth are made of manganese molybdenum alloy material,
which is durable and long-lasting;
3. Using imported Eaton hydraulic motors from the United States,
with high torque and durability;
4. Using Japanese technology reducer, flexible and convenient
operation.
TECHNICAL PARAMETERS | |||||||
Name | Unit | DPAE2000 | DPAE2500 | DPAE3000 | DPAE3500 | DPAE4500 | DPAE5000 |
Part No | 102000 | 102500 | 103000 | 103500 | 104500 | 105000 | |
Carrier | T | 1~2.5 | 1.5~3 | 2~3.5 | 2.5~4.5 | 3~5 | 4.5~7 |
MaxTorque | N.m | 1871 | 2432 | 2877 | 3614 | 4218 | 5056 |
Pressure | Bar | 205 | 205 | 240 | 240 | 240 | 240 |
Oil Fow Range | l/min | 23~53 | 30~61 | 30~61 | 30~68 | 38~76 | 38~76 |
Rotary Speed | rpm | 40~92 | 40~82 | 40~81 | 32~72 | 32~64 | 29~58 |
Hydraulic Hose | Inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
Output Shaft | mm | 065 | 065 | 065 | 065 | 065 | 075 |
UnitWeight | Kg | 50 | 51 | 75 | 76 | 77 | 110 |
Unit Height | mm | 595 | 595 | 700 | 700 | 700 | 780 |
Unit Max.Dia | mm | 200 | 200 | 244 | 244 | 244 | 269 |
Auger Series | mm | S4 | S4 | S4 | S4 | S4 | S5 |
AugerLength | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1500 |
Drill Dia.Range | mm | 100~400 | 100~500 | 100~600 | 100~750 | 100~900 | 150~600 |
Name | Unit | DPAE5500 | DPAE6000 | DPAE⁷000 | DPAE8000 | DPAE10000 | DPAE12000 |
PartNo | 105500 | 106000 | 107000 | 108000 | 110000 | 112000 | |
Carrier | T | 5~7 | 6~8 | 7~10 | 8~12 | 10~13 | 13~17 |
MaxTorque | N.m | 5910 | 6150 | 6931 | 8048 | 10778 | 11976 |
Pressure | Bar | 240 | 240 | 240 | 240 | 240 | 240 |
Oil Flow Range | l/min | 45~83 | 45~106 | 61~121 | 61~136 | 70~136 | 80~140 |
Rotary Speed | rpm | 28~50 | 34~80 | 37~72 | 29~64 | 26~45 | 22~43 |
Hydraulic Hose | Inch | 1/2 | 3/4 | 3/4 | 3/4 | 3/4 | 1 |
Output Shaft | mm | 075 | 075 | 075 | 075 | 075 | 075 |
Unit Weight | Kg | 112 | 128 | 130 | 132 | 167 | 167 |
Unit Height | mm | 780 | 850 | 850 | 850 | 930 | 930 |
Unit Max.Dia. | mm | 269 | 269 | 269 | 269 | 290 | 290 |
Auger Series | mm | S5 | S5 | S5 | S5 | S6 | S6 |
AugerLength | mm | 1500 | 1500 | 1500 | 1500 | 1750 | 1750 |
Drll Dia.Range | mm | 150~750 | 150~900 | 150~900 | 150~900 | 150~900 | 150~900 |
![]() |
