EXCAVATOR spare part Hydraulic Plate Compactor For Mini Excavator
PC200 ZX140 SK220
Hydraulic vibration compactor is mainly used in conjunction with
excavators, installed at the original bucket position at the front
end of the boom, and driven and controlled by the hydraulic power
of the excavator (installation and control are the same as
hydraulic)
Crushing hammer). The structure is simple and easy to use and
maintain. Suitable for various terrains and work methods. Can
complete flat compaction, inclined compaction, step compaction, and
trench pit compaction
And other complex foundation consolidation treatments.
Model Unit MV06T MV13T MV20T
Output power ton 3.5 7 11
Vibration count CPM 1900-2700 2200 2300
Drive oil pressure kgf/cm2 110-150 120-160 140-170
Drive oil volume I/min 45-65 135-155 195-210
Weight kg 350 750 1000

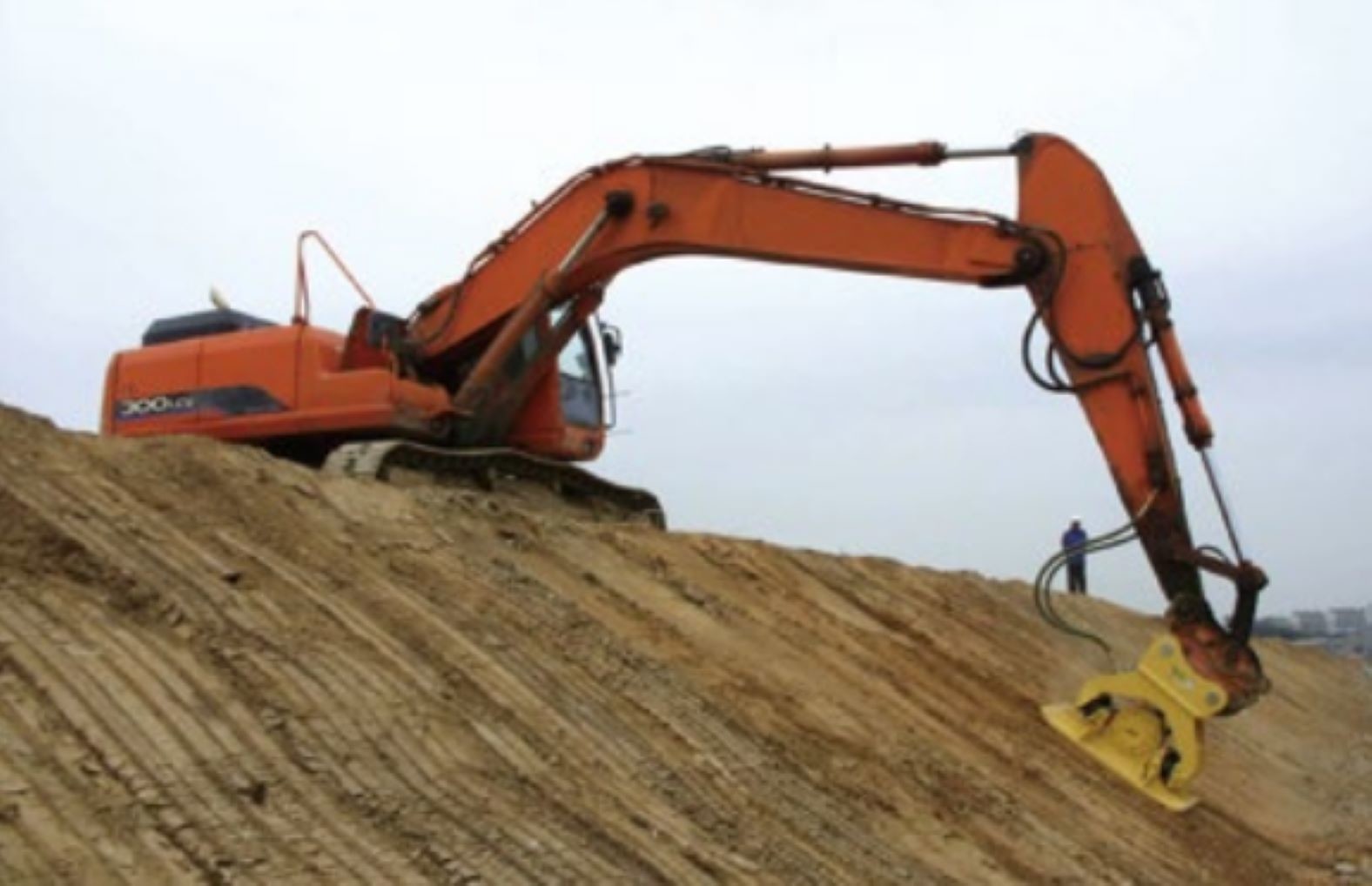

Hydraulic Compactor can be applicable to any position, such as
horizon compaction, step compaction, bridge abutment, the trench
pit compaction ,sub grade compaction, the corner turning point,
backfill compacted, concrete pavement patching compacted, tube side
compaction etc, our hydraulic compactor can also be used for
pulling piles and broken when necessary.
The excavator pressure oil drives the hydraulic motor to rotate,
and the hydraulic motor drives the eccentric mechanism to generate
centrifugal force to drive the ramming plate to act on the
compacted material.
Applicable conditions and product characteristics:
1.It is used in the turning point of abutment back, culvert
side, corner, shoulder, slope protection, for the tamping of
highway and railway subgrade, dam and slope protection,
building groove,concrete pavement repair,well, pipe
side,etc.
2.Using the hitting power of excavator crushing hammer
to provide power.
3.Fast installation, convenient operation, flexible operation,
practical effect is good, greatly saving costs and improving
work efficiency.
| SPECIFICATION |
| Model | Unit | DPAT300 | DPAT600 | DPAT800 | DPAT1000 |
| Impulse Force | Ton | 4 | 6.5 | 15 | 15 |
| Vibration Frequency | Rpm | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 45~75 | 85~105 | 120~170 | 120~170 |
| Operating Pressure | kg/cm² | 100~130 | 100~130 | 150~200 | 150~200 |
| Weight | kg | 300 | 500 | 900 | 950 |
| Bottom Measurement | (LxWxT)mm | 900x550x25 | 1160x700x28 | 1350x900x30 | 1350x900x30 |
| Height | mm | 760 | 920 | 1060 | 1100 |
| Width | mm | 550 | 700 | 900 | 900 |
| Suitable Excavator | ton | 4-9 | 11-16 | 17-23 | 23-30 |
