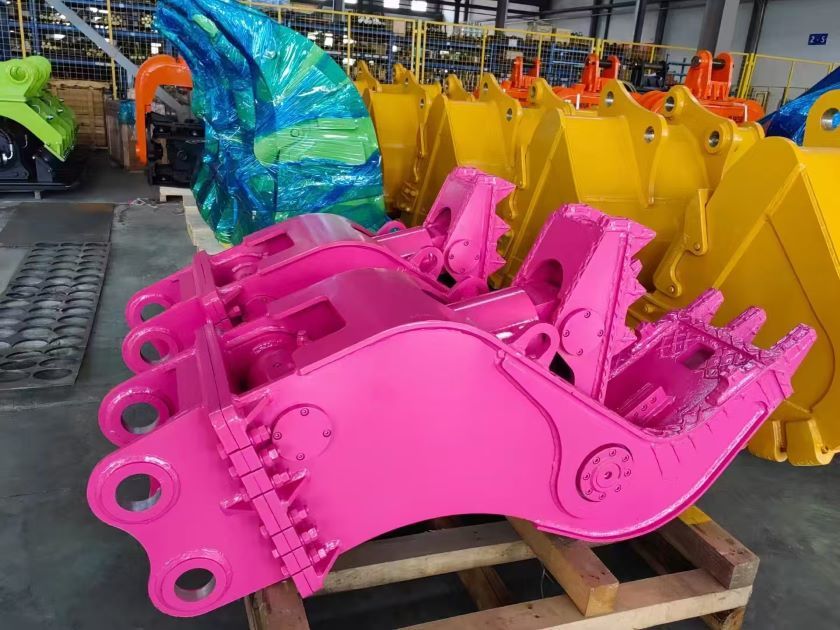

16-18T 24 ton ROTATING PULVERIZERS POWERFUL AND PRODUCTIVE
The unique design of the DOPRO rotating pulverizer allows operators
to deal with both the primary and secondary demolition tasks with a
single piece of equipment.
Accurate and fast as a crusher, and powerful and productive with
the jaws of a demolisher. With jaws designed to crush concrete as
effectively as possible and a heavy-duty Hardox® construction,
these pulverizers are ideal for operators looking to increase their
productivity and efficiency when dismantling structures.
Features:
Compact design with a short centre of gravity ensures optimal
manoeuvrability.
The aggressive design with large opening jaws increases performance
and productivity.
Unmatched crushing power makes light work of even the most
demanding tasks.
Open lower jaw improves penetration and allows for efficient
downsizing of material.
Hardened interchangeable teeth made of high wear resistant steel.
A heavy duty hydraulic cylinder mounted in reverse with complete
internal protection of all hydraulic components.
Manufactured using Hardox steel ensures durability and an increased
lifespan.
Continuous 360° rotation with manual speed adjustment.
Heavy duty rotation assembly with dual bearings on the slewing ring
and dual hydraulic motors for superior control and reliability.
Speed multiplier hydraulic valve reduces open and close cycle time.
Reversible steel cutting blades ensure a longer life and require
less maintenance.
Sorting spikes helps with material selection.
Wear bars increases protection and minimize build-up required.
| SPECIFICATION |
| DESCRIPTION | UNT | DPAP1600 | DPAP2000 | DPAP3000 | DPAP4500 |
| Applicable Excavator | ton | 14~20 | 18~26 | 26~32 | 38~48 |
| lbs | 30,864~44,092 | 39,683~57,320 | 57,320~70,547 | 83,775~105,821 |
| Operating Weight | kg/lbs | 1,250/2,755 | 1,800/3,968 | 2,350/5,180 | 3,450/7,605 |
| Overall Length(L) | mm/inch | 1,580/62.2 | 1,806/71.1 | 1,990/78.3 | 2,336/91.9 |
| Jaw Opening | mm/inch | 800/31.4 | 980/38.5 | 1,100/43.3 | 1,300/51.1 |
| Force at Mid | ton/lbs | 70/154,323 | 120/264,554 | 195/429,901 | 270/595,248 |
| Operating Pressure | bar/psi | 280/4,061 | 300/4,351 | 320/4,641 | 320/4,641 |
| Setting Pressure | bar/psi | | | | |
| Rotation Type | | Fixed |
